What are Virginia Precast Temporary Concrete Barrier Specifications?
The Virginia Department of Transportation (VDOT) outlines specifications regarding the proper dimensions for precast temporary concrete barriers, including general notes, plan view details, elevation details, section details and more.
Virginia Precast Temporary Concrete Barrier General Notes
The Virginia Department of Transportation’s general instructions are as follows:
-
At the option of the manufacturer, additional reinforcing may be added to the precast concrete barriers for handling.
-
Concrete should be 4,000 PSI (minimum).
-
Barrier delineator size, color and spacing should be in accordance with the specifications.
-
Cost of delineators should be included in the price bid for traffic barrier services.
-
Other precast traffic barrier service concrete designs that have been approved by VDOT as an acceptable alternate to the standard design may be substituted.
-
A 1” radius may be used as an alternative for the ¾” chamfer.
-
Barrier delineator reflective surfaces in all instances should be facing oncoming traffic.
-
Barrier vertical panels should be spaced in accordance with the Virginia work area protection manual.
Virginia Precast Temporary Concrete Barrier Specifications
Virginia barriers should conform to the following specifications according to the Virginia Department of Transportation:
Plan View
Barriers measure 20’-0” long and 24” wide. They include a connector on each end, a keyway and a 2’-7” nominal drainage slot (placed at the center of the barrier). There are five #4 bars that run through the barrier. For details on proprietary MB-7D PC lengths, VDOT instructs that your refer to the manufacturer.
Elevation View
Barriers measure 2’-8” tall and include two #6 bars that run the length of the barrier. The #6 bars are set at an angle and protrude 1-3/4” out from the barrier. On the left side, the lower bar is set 4” from the ground line and the upper bar is set 6” from the top of the barrier. On the right side, the lower bar is set 2” from the ground line and the upper bar is set 8” from the top of the barrier.
End View
Barriers measure 24” wide at the bottom and 9” wide at the top. They have a 10” R. The break point is 10” from the ground line. The vertical revel is 4”. The height of the lower slope is 7” and the height of the upper slops is 32”. Barriers are symmetrical in nature.
Section A-A
Each barrier includes an 8” x 12” vertical panel on the top of the barrier (as required).
Flare Rates

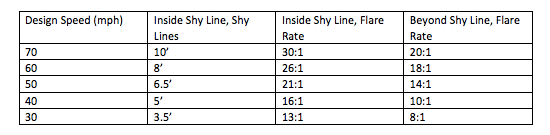

Flare rates are as follows:
When using VDOT Standard MB-7D PC with the pin and loop positive connection, allow for a 6’-0” dynamic deflection. Provide a minimum of 60’ of barrier upstream and downstream of work zones for anchorage. For approved non-VDOT designs, refer to manufacturer’s installation instructions for deflection and anchorage.
This blog post is an interpretation of specifications by the Virginia Department of Transportation. Please consult with Virginia DOT's most recent requirements for definitive information.
