What are Delaware 32 Inch Concrete Safety Barrier (F-Shape) Specifications?
The Delaware Department of Transportation outlines specifications regarding the proper dimensions for 32” concrete safety barriers (F-shape barriers), including general notes, elevation view details and section view details.
Delaware F-Shape Barrier General Notes
The Delaware Department of Transportation’s general instructions are as follows:
-
Concrete clear covers for reinforcing bars should be 1-1/2” minimum.
-
For slip-form construction, the 4B2 bars should be placed as one continuous piece. The bars should overlap a minimum of 12” in this case.
-
For slip-form construction, a joint should be cut in the barrier every 10’-0” at a maximum depth of ½”.
Delaware F-Shape Barrier Elevation View Details
The Delaware Department of Transportation outlines the proper dimensions for F-shape barriers based on an elevation view. The following pertains to typical cast-in-place or slip-form construction.
-
Barrier length should be 10’-0” minimum to 20’-0” maximum.
-

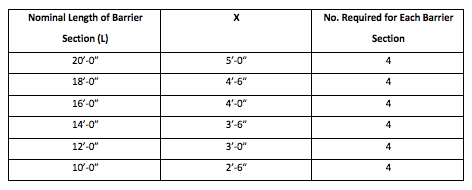

Bar offsets should conform to the following table:

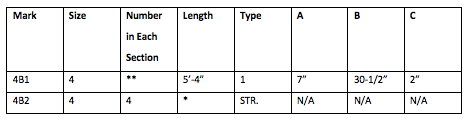

- Bar lists are as follows:
*The length of bar 4B2 should be 6” shorter in length than the nominal size of the barrier in which it is used.
*See the bar offsets chart above for more details.
Delaware F-Shape Barrier Section View Details
The Delaware Department of Transportation provides section view details outlining the proper dimensions for F-shape barriers:
-
Bottom width: 24”
-
Top width: 9-5/8”
-
Height: 34”
-
Break point: 10” R.
-
Vertical reveal: 1” R.
-
Bottom slope height: 7”
-
Top slope height: 24”
-
Corners: ¾” chamfer (typ.)
This blog post is an interpretation of specifications by the Delaware Department of Transportation. Please consult with Delaware DOT's most recent requirements for definitive information.
